SKU:DS-2SF8C442MXG-EL/26

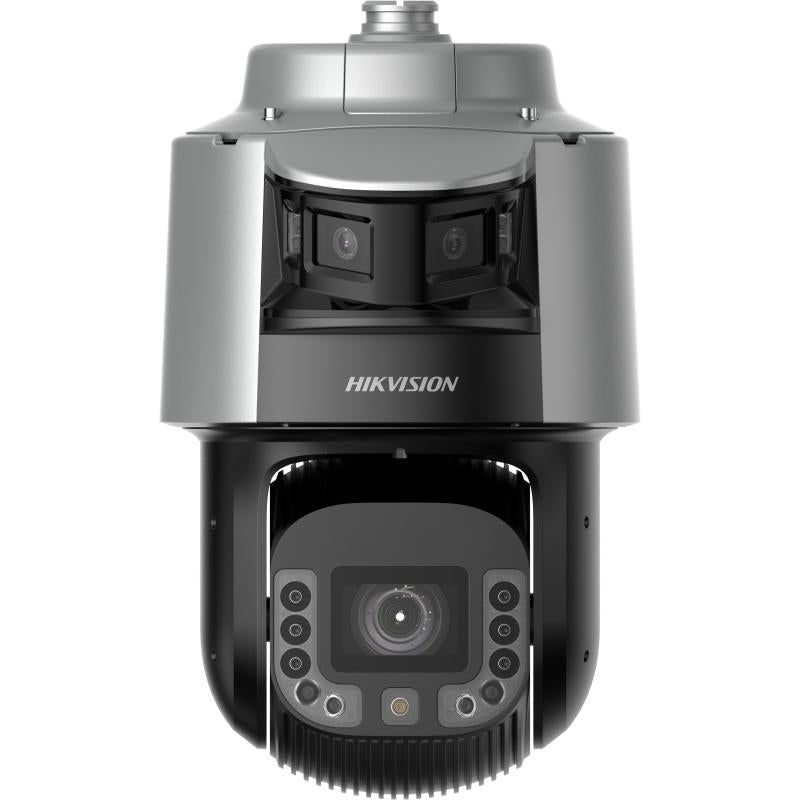

Hikvision TandemVu 8C Series 42X DarkFighter PTZ

$4,350.00
$4,350.00
Sale Sold out
  • instant shipping
  • secure ordering
  • 30 day return policy
Secure checkout with
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Have a Question
  • Vendor:

    Jackaroo Security

Description

Most PTZ cameras force you to choose between wide coverage or fine detail. Once the camera zooms in on movement, you lose visibility of everything else happening around it.

That becomes a real issue on larger sites. Truck yards, warehouses, depots, schools, acreage properties — the exact places where incidents rarely happen directly in front of the camera.

The TandemVu 8C Series was built to solve that problem properly.

The panoramic channel keeps the wider scene locked in view while the PTZ side handles the tracking and identification work. So instead of swinging a single camera around hoping operators catch something, you’re maintaining situational awareness across the site the entire time.

On active commercial sites, that makes a noticeable difference.

The 42x optical zoom is where this model starts separating itself from standard PTZs. Mounted correctly, it has no problem pulling usable detail from long distances without the image falling apart digitally. For perimeter lines, gates, storage compounds, machinery areas, or vehicle movement across open ground, that reach matters more than most spec sheets make it sound.

A lot of cheaper PTZs advertise zoom capability, but once lighting conditions drop off, the performance drops with it. That’s where Hikvision’s DarkFighter platform still holds its ground well. The low-light performance on these units is genuinely strong when paired with decent mounting height and proper scene lighting. You retain colour longer into the evening instead of switching straight into muddy monochrome footage.

The IR range is substantial too. Realistically, environmental conditions always affect quoted distances, but on large open sites the 300m IR capability gives this camera far more usable night coverage than most mid-range PTZs.

The panoramic channel is also more useful than people expect. On sites with wide frontage or long fence lines, installers normally compensate by adding extra fixed cameras just to maintain overview coverage while the PTZ is moving. This setup reduces a lot of that compromise.

From an installation perspective, this is not a lightweight residential PTZ pretending to be commercial-grade. It’s built for exposed environments:

  • IP67 weather protection
  • IK10 vandal resistance
  • Long-range night capability
  • Deep learning analytics for human and vehicle filtering

The AI functions are particularly useful on sites where false alarms become unmanageable. Trees moving, headlights, wildlife, rain reflection — all the usual problems that eventually make clients ignore notifications altogether.

That said, cameras like this still need proper system design around them. Mounting position, viewing angle, network stability, recording bitrate, and scene lighting all heavily affect final performance. A high-end PTZ installed poorly will still underperform.

Where this model works best is on properties where operators need to monitor both activity and context at the same time:

  • Logistics facilities
  • Commercial warehouses
  • Industrial compounds
  • Schools and campuses
  • Farms and rural properties
  • Construction sites
  • Large car parks
  • Critical infrastructure

For smaller residential installs, this would usually be excessive. But on larger sites where coverage gaps become liability issues, the TandemVu platform is one of the more practical PTZ setups currently available.

If you’re planning a larger surveillance project and want to know whether a dual-lens PTZ setup makes sense for your site, get in touch with our team and we’ll help design a system around the actual environment — not just the camera specs.



View Product Details

Specifications

  • Image Sensor[Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS

  • Min. Illumination[PTZ channel] Color: 0.0005 Lux @ (F1.3, AGC ON), B/W: 0.0001 Lux @ (F1.3, AGC ON), 0 lux with IR,[Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light

  • Shutter Speed1 s to 1/30000 s

  • Slow ShutterYes

  • Day & Night[Panoramic channel] Color, [PTZ channel] IR cut filter

  • Zoom[PTZ channel] 42 × optical, 16 × digital

  • Max. Resolution[Panoramic channel] 3632 × 1632, [PTZ channel] 2560 × 1440
  • Main Stream[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),[Panoramic channel] 50 Hz: 25 fps (3680 × 1656,3632 × 1632), 60 Hz: 30 fps (3680 × 1656,3632 × 1632)

  • Sub-Stream[PTZ channel] 50 Hz: 25 fps (704 × 576,640 × 480,352 × 288), 60 Hz: 30 fps (704 × 576,640 × 480,352 × 288),[Panoramic channel] 50 Hz: 25 fps (1200 × 536、960x432), 60 Hz: 30 fps (1200 × 536、960x432)

  • Third Stream[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No

  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 16 Mbps

  • H.264 TypeBaseline profile,Main profile,High profile

  • H.265 TypeMain profile

  • Scalable Video Coding (SVC)H.264 and H.265 encoding

  • Region Of Interest (ROI)8 fixed regions for each stream
  • Supplement Light Range[Panoramic channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m

  • Smart Supplement LightYes
  • Movement Range (Pan)360° endless

  • Movement Range (Tilt)[Panoramic channel] 12° to 24°, [PTZ channel] -20° to 90°

  • Pan Speed[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s

  • Tilt Speed[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s,[Panoramic channel] tilt speed configurable

  • Proportional Pan[Panoramic channel] No, [PTZ channel] Yes

  • Presets300

  • Patrol Scan8 patrols, up to 32 presets for each patrol

  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan

  • Power-Off MemoryYes

  • Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan

  • 3D PositioningYes

  • PTZ Status DisplayYes

  • Preset FreezingYes

  • Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

  • Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC

  • Audio Bit Rate32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)

  • Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz

  • Environment Noise FilteringYes
  • APIISAPI,SDK,ISUP,ONVIF

  • Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)

  • ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP

  • Simultaneous Live ViewUp to 20 channels

  • User/HostUp to 32 users. 3 user levels: administrator, operator, and user

  • SecurityPassword protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark

  • ClientiVMS-4200,HikCentral Pro,Hik-Connect

  • Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+

  • Wide Dynamic Range (WDR)[Panoramic channel] 120 dB, [PTZ channel] 120 dB

  • Day/Night SwitchDay,night,auto,schedule

  • Image EnhancementHLC,3D DNR

  • Privacy Mask[Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

  • DefogOptical defog

  • Image StabilizationEIS (Built-in gyroscope to improve EIS performance)

  • Regional ExposureYes

  • Regional Focus[Panoramic channel] No, [PTZ channel] Yes

  • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

  • Image Parameters SwitchYes

  • SNR≥ 52 dB
  • Satellite PositioningNo

  • GyroscopeYes

  • CompassNo
  • Basic Event[PTZ channel & panoramic channel] alarm input and output, exception,[PTZ channel] motion detection, video tampering alarm

  • Smart Event[Panoramic channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection

  • Linkage[Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
  • Multi-Target-Type Detection[PTZ channel] Supports simultaneous detection and capture of human body and face

  • Perimeter ProtectionPTZ and Panoramic channel both support
